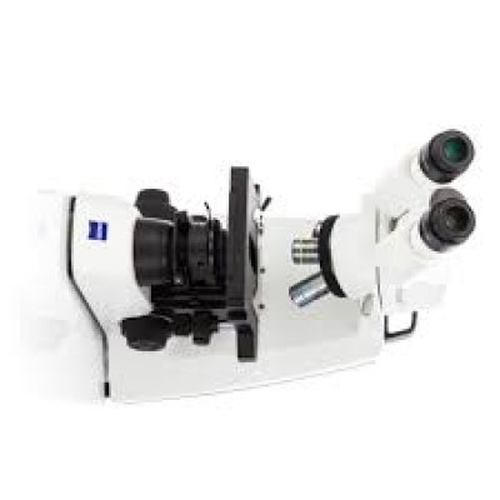

Eductional Microsccope

Name: Eductional Microsccope
Brand: GUPTA INSTRUMENTS CO
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Eductional Microsccope Specification

Core Components
Objective lenses, Eyepiece, Stage, Focusing Knobs

Automation Grade
Manual

Temperature Range
Ambient

Voltage
220V AC

Power Source
Electric (with light source), Manual Observation

Accuracy
High Precision Optical System

Feature
Coarse and Fine Focusing, Adjustable Light Source

Measurement Range
40X - 1000X Magnification

Equipment Materials
Metal Body with Optical Glass Elements

Type
Educational Microscope

Usage
Biological and Educational Laboratory Applications

Display Type
Binocular

Dimension (L*W*H)
350 mm x 180 mm x 380 mm (approximate)

Weight
Approx. 6-8 kg

Objective Lenses
Achromatic 4x, 10x, 40x, 100x (oil)

Illumination
LED or Halogen Lamp with Adjustable Intensity

Condenser
Abbe Condenser, NA 1.25 with Iris Diaphragm

Interpupillary Adjustment
55 - 75 mm

Focusing Mechanism
Coarse and Fine Focus Controls

Head Type
Binocular, Inclined at 45

Stage
Mechanical Double Layer with X-Y Movement

Nosepiece
Quadruple Nosepiece

Body Color
White with Black Stage

Eyepiece Magnification
10X Wide Field

About Eductional Microsccope

Experience phenomenal precision and kingly performance with our Educational Microscope, crafted for optimum clarity and powerful magnification. Featuring 10X wide field eyepieces and achromatic lenses from 4x to 100x (oil), you achieve an incredible 40X to 1000X range, ideal for diverse biological and laboratory explorations. The mechanical stage with X-Y movement, adjustable intensity (LED/Halogen), and robust metal frame ensure durability and user comfort. Take advantage of instant savings-purchase now and pick yours for unbeatable reliability, accuracy, and lasting educational value.

Special Features for Enhanced Learning

The Educational Microscope boasts a quadruple nosepiece, Abbe condenser with iris diaphragm, and binocular head inclined at 45, ensuring precise and comfortable observation. Its metal body and optical glass elements deliver exceptional durability and clarity. Widely used by students, educators, and laboratory professionals, it offers both coarse and fine focusing, mechanical double-layer stage, and an adjustable LED or halogen lamp that adapts to varying environmental needs-making it ideal for in-depth study and teaching.

Supply, Export Markets & Sample Information

We maintain a strong supply ability catering to bulk orders, ensuring timely delivery worldwide. Our main export markets include Europe, Asia, and Africa. List prices are competitive and designed for maximum value. We can provide samples upon request; sample charges may apply depending on destination and specifications. Our responsive support team assists with all inquiries, ensuring seamless order processing and satisfaction for every client in the educational field.

FAQ's of Eductional Microsccope:

Q: How does the adjustable illumination benefit users?

A: The adjustable LED or halogen illumination lets users control light intensity for optimal clarity and contrast across diverse specimen types and laboratory lighting conditions.

Q: What are the main features of this educational microscope?

A: Key features include 10X wide field eyepiece, achromatic objectives (4x, 10x, 40x, 100x oil), binocular head, mechanical double-layer stage, Abbe condenser, adjustable lighting, and both coarse and fine focusing controls.

Q: Where can this microscope be used effectively?

A: This microscope is ideal for biological and educational laboratory applications, making it suitable for schools, colleges, universities, and research institutions.

Q: What is the process to purchase or request a sample?

A: To purchase or request a sample, contact our sales team or visit our website to submit your inquiry. For samples, charges may apply based on customization and shipping destination.

Q: What benefits does the binocular head offer?

A: The binocular head provides more comfortable double-eye viewing, reduces eye strain, and delivers clearer images, enhancing accurate observations during extended study sessions.

Q: When should the 100x oil immersion objective be used?

A: The 100x oil immersion objective is recommended for examining minute specimen details, such as bacterial cells, requiring high magnification and resolution.
